High-Profile Fifth Wheel

Uncompromising High-Profile Fifth Wheels Designed for the Long-Term Ownership Experience

Explore Floorplans

High-Profile Fifth Wheel

Uncompromising High-Profile Fifth Wheels Designed for the Long-Term Ownership Experience

Explore Floorplans

High-Profile Fifth Wheel

Floor Plans

Fifth Wheel

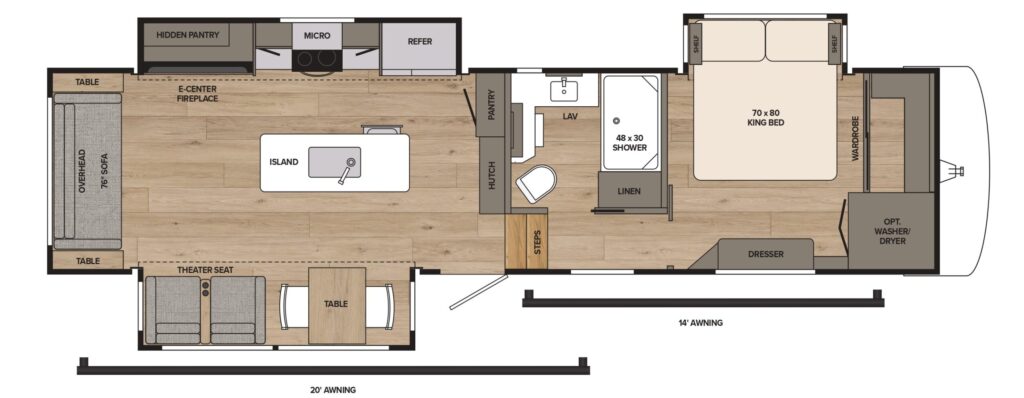

HP320RL

Length

36' 3"

Weight

14,351lbs

Sleeps

Fifth Wheel

HP320RL

Length

36' 3"

Weight

14,351lb

Hitch

3,089lb

Carrying

3,149lb

Coming Soon

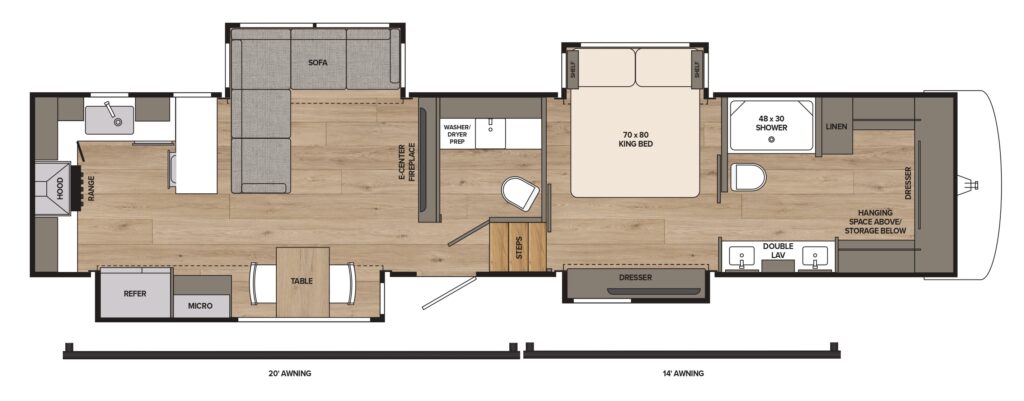

HP380RK

Length

TBD

Weight

TBD

Hitch

TBD

Carrying

TBD

Coming Soon

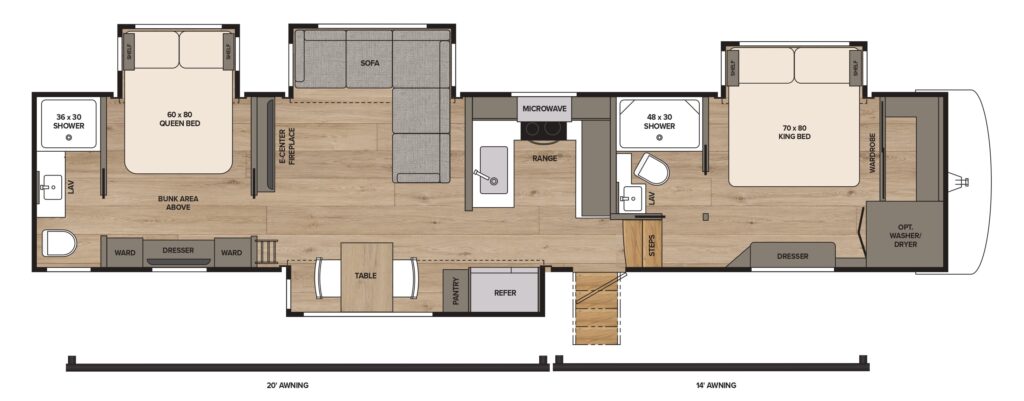

HP390DS

Length

TBD

Weight

TBD

Hitch

TBD

Carrying

TBD

High-Profile Fifth Wheel

Specs

High-Profile Fifth Wheel

Standards

Interior & Living Room

Boundless PrecisionFit Cabinetry
Full Sized Sleeper Sofa- Fortress Protected
Theater Seating with Level 4 vinyl *Everbound*
Living Room Walk-In Closet
Window Integrated Day Screens & Blackout Shades w/ Reflective Insulation + Full Bug Screens
Residential Dimmable Ceiling Strip Lighting
Floating Entrance Steps w/ Indirect Lighting
100% Carpet Free

Boundless Ryde (5 Year Warranty)

Boundless Bronze E-Coat + Powder Coat Chassis
Tour Coil Suspension
Helux Pin Box
8000lb Axles
Hydraulic Disc Brakes
Commercial Grade Load Range H 16-Ply Tires
17.5″ Custom Aluminum Premium Wheels
2″ Receiver Hitch w/ 4 Pin Plug
6 Point Hydraulic Titan Leveling System
Banded Tire Pressure Monitoring System

Power

50-Amp Smart Plug
4x 20 lbs. LP Tanks
Generator Prep w/ Wire Harness
30AMP MPPT Solar Controller
400W of Solar Panels
2000 Watt Inverter
Interior inverted outlets
Main Wire Access Removable Panel
Transfer Switch
Central 12V Power Distribution Center
Serviceable Fuses
Residential Outlets w/ USB & USB-C

Kitchen & Dinning

Pull-Out Cutting Board (Removable for Cleaning)
Premium Residential Drawers w/ Dovetail Joints
Adjustable Overhead Cabinet Shelves
Pull-Out Trash
Dedicated Silverware and Utensil Drawer
Residential Solid Surface Countertops
Custom Island Design w/ Waterfall Edges
Residential Pendant Lights
Kitchen Work Lighting Under Overhead Cabinets
Boundless Table – One Table – No Limits
Dishwasher Prep

Bedroom & Bathroom

Residential 9″ King Bamboo Mattress (70″x80″) w/ Nightstands
Dual Bedside Shelves + Outlets w/ USB & USB-C
Walk-In Closet w/ built in soft close drawers and hidden laundry storage
39″ Smart TV (Bedroom)
Hidden Sliding Dresser Top Storage Compartment
Dual Motion-Activated LED Bed Lights
Oversized Linen Closet
One-Piece 48″x30″ Fiberglass Shower
Residential Shower System Handheld Sprayer
LED Shower Lighting
Residential Dimmable Ceiling Strip Lighting
Washer/Dryer Prep

Exterior

Under I-Beam Storage w/ 4 Slide-Tray Storage Drawers
2x Legless Girard Awnings (Full Campside Coverage)
Argon Filled Square Frameless Dual Pane Windows
LED Flood Lights
Amber Underbody Lighting
Amber Front arch lighting
LED Pass-Through Storage Area Lights
Front Storage Area Motion-Activated Lighting
Portable 14.5′ Telescoping Ladder w/ assisted roof access
Under-Step Lighting
Full length rear taillights
Propane Quick Connect

Water & Plumbing

Three Stage Water Filtration System
Water Manifold
Electric Gate Valves
Miracle Probes in Holding Tanks
Stainless Steel Braided Water lines
Brass Fittings
Nautilus Convenience Center
4 Chamber water pump
Electric Waste Valves w/ Indicator Light & Manual-Override

Electronics

2x Exterior Marine Grade Wet Sounds Speakers w/ Bluetooth Controller
Holding Tank Monitors
Rear & Side Camera System Prep
Winegard Air 360+ TV & FM Antenna
Starlink Prep
55″ Smart TV (Main) & 39″ Smart TV (Bedroom)
Sound Bar (Main)

Boundless Climate

Triple Insulated Front Cap
Double Insulated Roof, Sidewalls & Floor
Argon Filled Square Dual Pane Windows
Forced Heat to underbelly
3-15000 BTU Air Conditioners w/ Heat Pumps
35,000 BTU Ducted Furnace
12V Heated Holding Tanks
Fireplace w/ 5,000 BTU Electric Heat

Structure & Construction

16″ On Center Aluminum Six-Sided Structure
25%-55% Thicker Aluminum vs Laminated Wall
Boundless Precision Wall Construction
101″ Wide Body
Metal Slide Room Roofs
Superior Sheet Glass Exterior
Composite floors (main, upper deck & slide out)
Composite interior wall and ceiling boards
Composite One-Piece Impact Guard Top coat -Reinforced layered on 3/8 Impact Guard Composite Substructure
Boundless Automotive Exterior Seals Package
Seamless one-piece molded front cap with amber light
Thicker aluminum structure for superior construction
Brackets screwed and glued to allow for flexibility during travel.
Under carriage access panel to essential locations

Appliances

Energy Star 20 cu. ft. 12V Fridge
30″ OTR Microwave
24″ Range w/ 4-Burner Stovetop & 3.4 cu ft Oven
Tankless Water Heater (Controller in Main Bath)
2x Maxxair Fans w/ Rain Sensor (Kitchen & Bathroom)
Dishwasher Prep
Washer & Dryer Prep

High-Profile Fifth Wheel

Options

Boundless Options

Washer/Dryer
Dishwasher
Stainless Appliance package
Full Body Paint (Signature or Reserve Collection)
Custom Full Body Paint
5.5KW Dual Fuel Generator
Queen Bed
Graphics/Wheels
GEN-Y Hitch
Slide toppers
